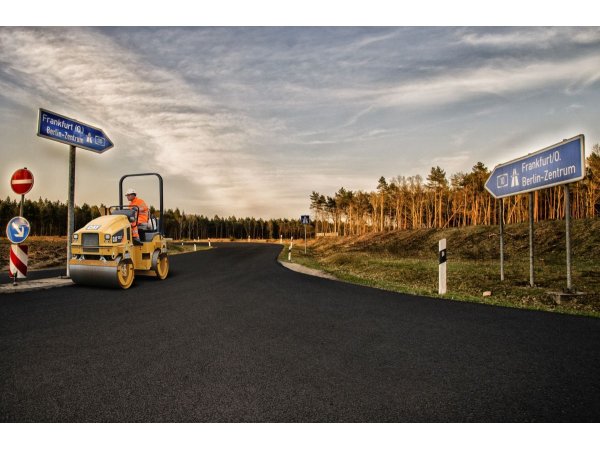

The CB2.5 is a 2.5 metric ton machine with 1000 mm (39") drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.

Informações Tećnicas

• Gross Power: 22.9 kW
• Operating Weight: 2250 kg
• Standard Compaction Width: 1000 mm

Mais informações

Weights

• Operating Weight: 2250 kg / 4960 lb
• Maximum Operating Weight: 2428 kg / 5353 lb

Operating Specifications

• Standard Compaction Width: 1000 mm / 39 in
• Static Linear Load: 11.7 kg/cm / 65.5 lb/in
• Travel Speed - Maximum: 12 km/h / 7.5 mile/h
• Drum Offset: 40 mm / 1.5 in

Engine

• Gross Power: 22.9 kW / 30.7 HP
• Engine Model: C1.5

Dimensions

• Overall Length: 2575 mm / 101 in
• Wheel Base: 1800 mm / 71 in
• Overall Width: 1112 mm / 44 in
• Height - ROPS: 2700 mm / 106 in

Vibratory System

• Centrifugal Force per Drum - Maximum: 28.9 kN / 6497 lb
• Centrifugal Force per Drum - Minimum: 12.8 kN / 2878 lb
• Frequency: 60/48 Hz (3,600/2,880 vpm)
• Nominal Amplitude - High: 0.56 mm / 0.022 in

Service Refill Capacities

• Fuel Tank Capacity: 60 l / 15.9 gal (US)
• Water Spray Tank Capacity: 200 l / 52.8 gal (US)
