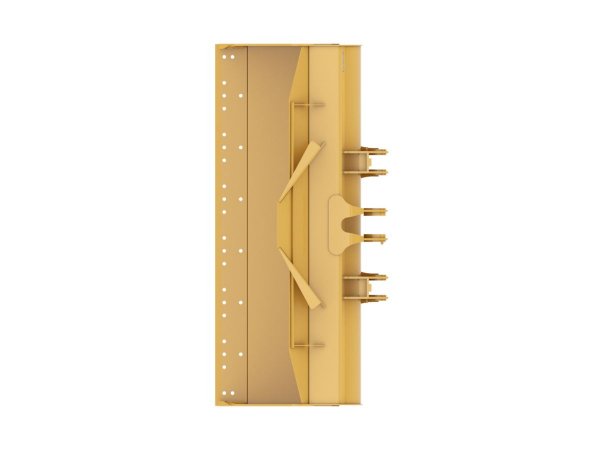

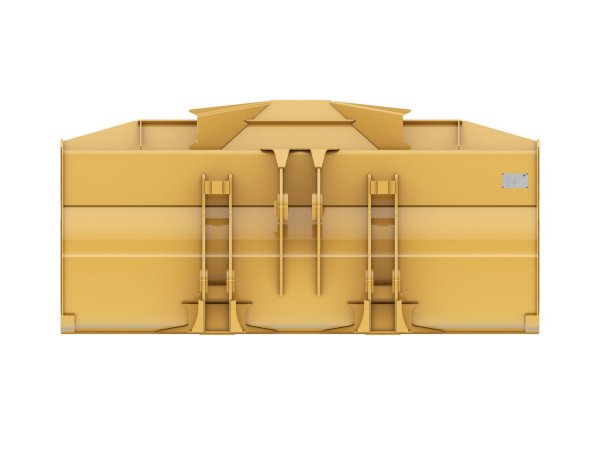

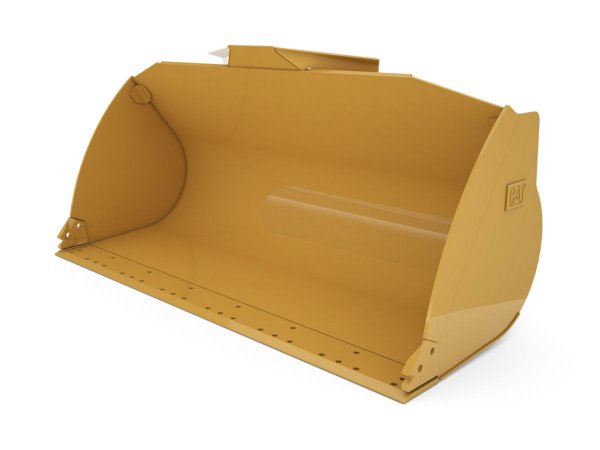

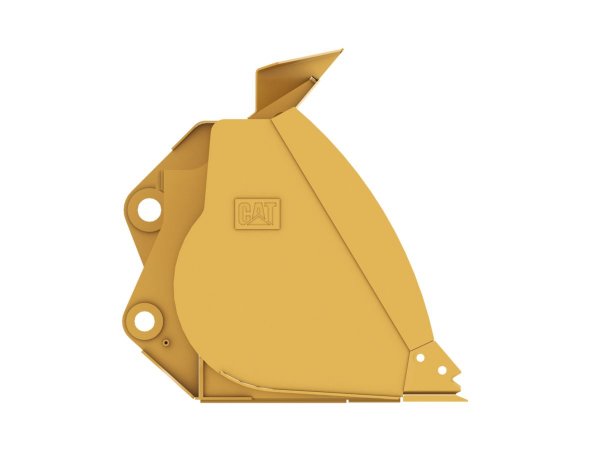

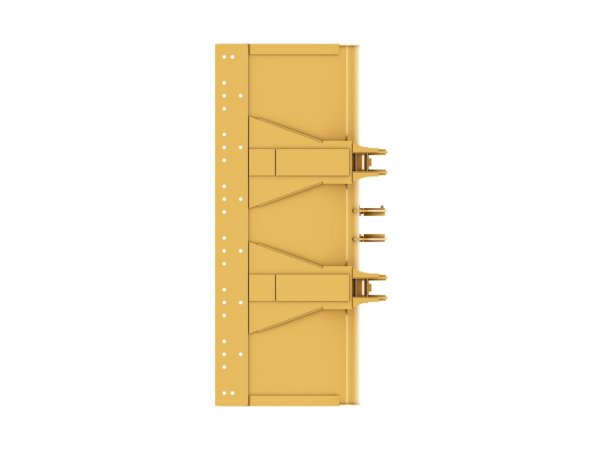

Cat® General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine's linkage, weight, lift and tilt capacities. The result is a bucket optimized for performance and productivity, and intended for use in production applications. The benefits of this design bring higher fill factors and material retention.

Informações Tećnicas

• Capacity: 2.5 m³
• Width: 2727 mm
• Weight: 978 kg

Mais informações

Geral

• Width: 2727 mm / 107.4 in
• Height: 1336 mm / 52.6 in
• Weight: 978 kg / 2156.1 lb
• Length: 1303 mm / 51.3 in
• Capacity: 2.5 m³ / 3.2 yd³
• Rated Capacity: 2.5 m³ / 3.2 yd³
• Base Edge Thickness: 25 mm / 1 in
• Interface Type: Pin On

Specifications

• Capacity: 2.5 m³ / 3.2 yd³

Base Edge Thickness

• Base Edge Thickness: 25 mm / 1 in
