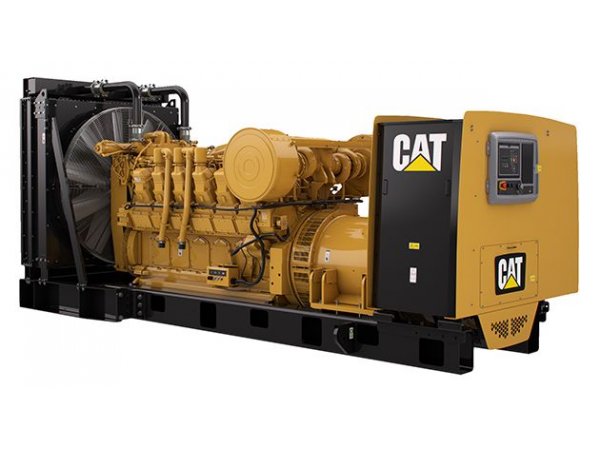

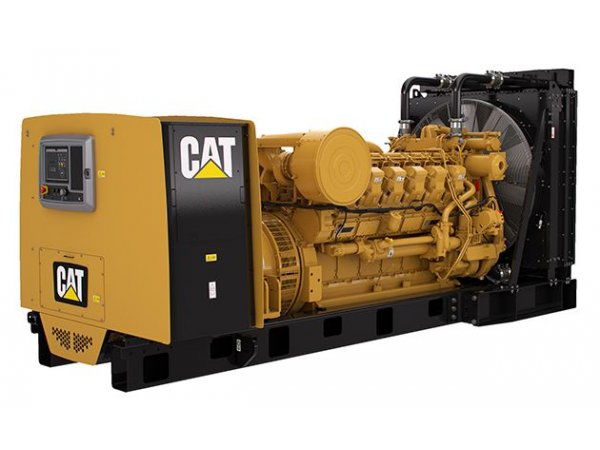

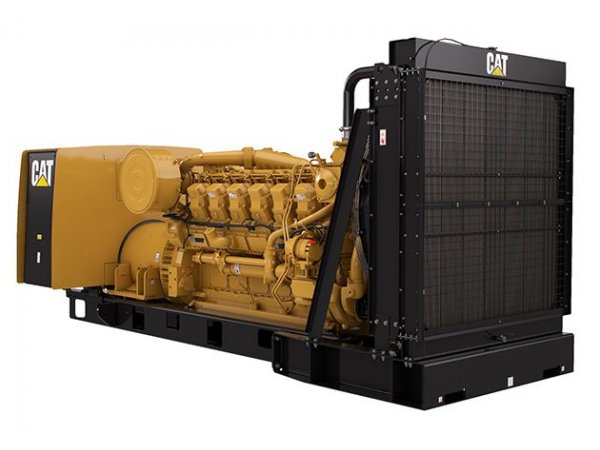

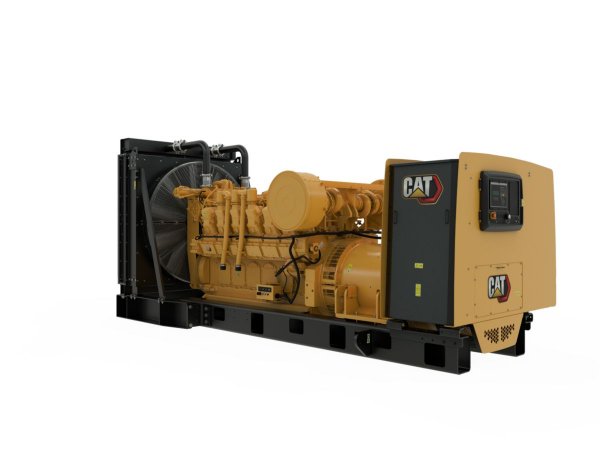

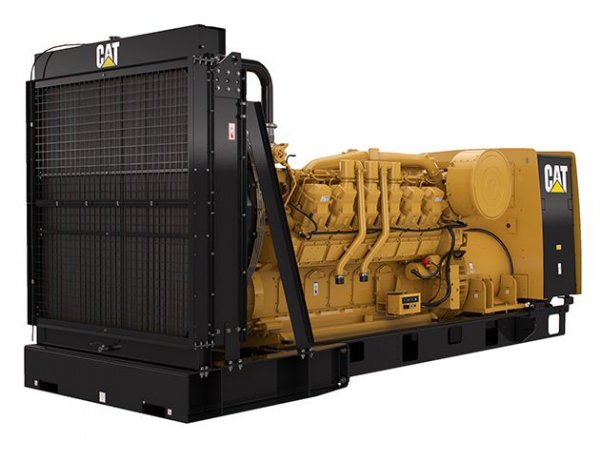

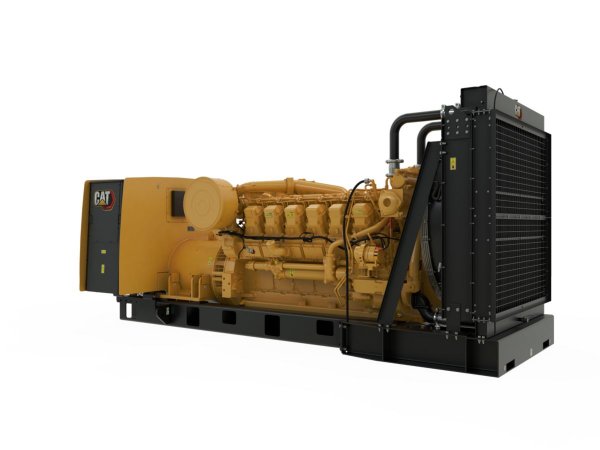

The 3512 generator set has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The packages can be optimized for performance that matters to you with either low emissions or low fuel consumption versions available. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.

Informações Tećnicas

• Minimum Rating: 1000 kVA
• Maximum Rating: 1400 kVA
• Emissions/Fuel Strategy: Low Fuel Consumption, Low Emissions

Mais informações

Generator Set Specifications

• Minimum Rating: 1000 kVA
• Maximum Rating: 1400 kVA
• Voltage: 380 to 415 Volts
• Frequency: 50 Hz
• Speed: 1500 rpm
• Duty Cycle: Standby, Mission Critical, Prime, Continuous
• Emissions/Fuel Strategy: Low fuel, Low Emissions
• Length - Maximum: 5269 mm / 207.5 in
• Width - Maximum: 2015 mm / 79.3 in
• Height - Maximum: 2336 mm / 92 in

Generator Set Configurations

• Emissions/Fuel Strategy: Low Fuel Consumption, Low Emissions

Engine Specifications

• Engine Model: 3512 TA, V-12, 4-Stroke Water-Cooled Diesel
• Displacement: 51.8 l / 3161.03 in³
• Fuel System: Direct Unit Injection
• Aspiration: TA
• Governor Type: Woodward
• Compression Ratio: 13.5:1
• Bore: 170 mm / 6.69 in
• Stroke: 190 mm / 7.48 in
• Air Inlet: Single element canister style with service indicator
• Exhaust Flange Size: 203.2 mm (8.0 in)

Generator Set Dimensions

• Length - Maximum: 5269 mm / 207.5 in
• Width - Maximum: 2015 mm / 79.3 in
• Height - Maximum: 2336 mm / 92 in
• Length - Minimum: 5165 mm / 203.5 in
• Dry Weight - Genset (minimum): 10224 kg / 22540 lb
• Dry Weight - Genset (maximum): 10460 kg / 23060 lb

Dimensions

• Length - Maximum: 5269 mm / 207.5 in
• Width - Maximum: 2015 mm / 79.3 in
• Height - Maximum: 2336 mm / 92 in
• Length - Minimum: 5165 mm / 203.5 in
• Dry Weight - Genset (minimum): 10224 kg / 22540 lb
• Dry Weight - Genset (maximum): 10460 kg / 23060 lb
