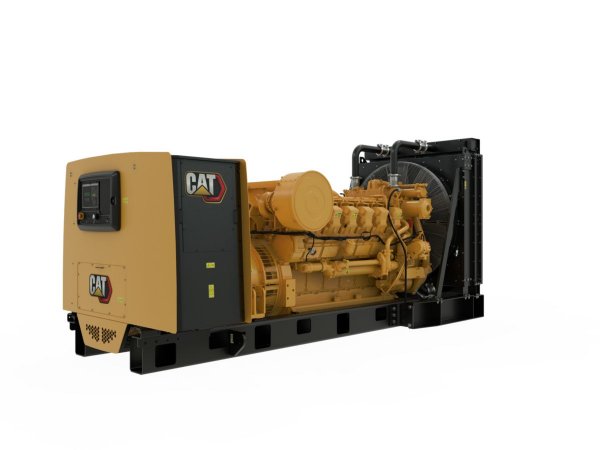

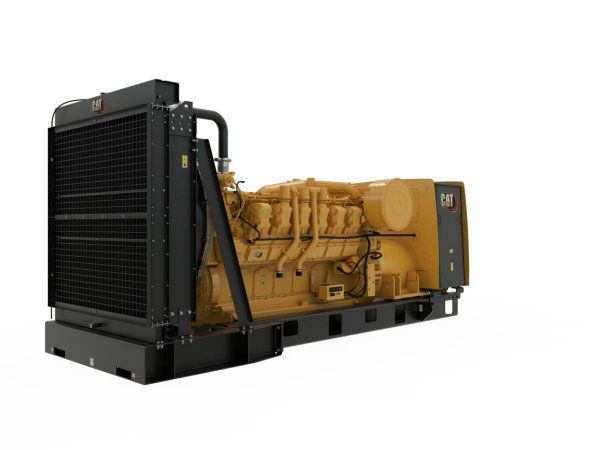

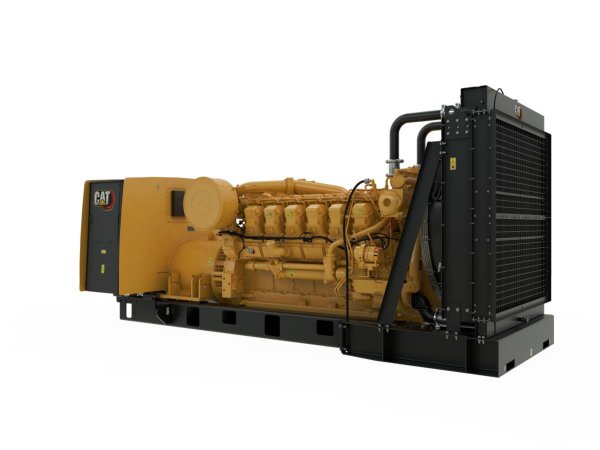

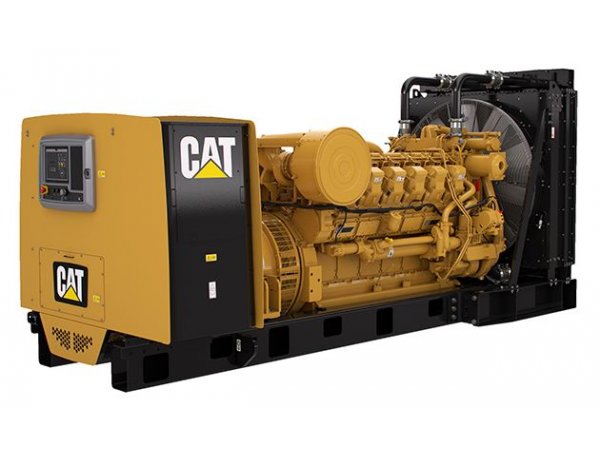

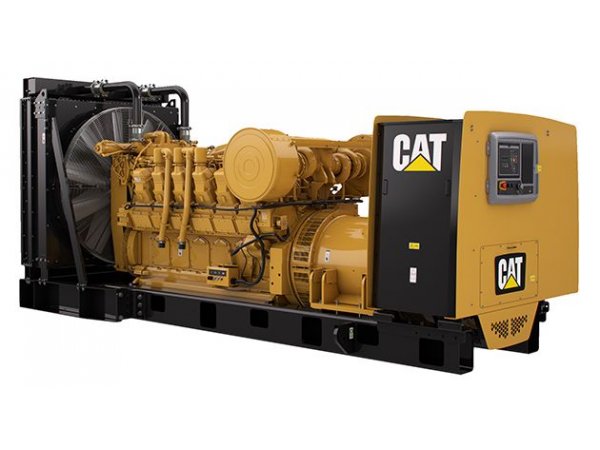

The 3512A generator set withUpgradeable Packaging has been developed for a wide range of applications, from emergency standby installations such as healthcare and datacenters to continuously powering remote installations. The packages can be optimized for performance that matters to you with either low emissions or low fuel consumption versions available. Backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty, Cat generator sets will provide the reliability and durability you expect.

Informações Tećnicas

• Minimum Rating: 890 eKW
• Maximum Rating: 1250 eKW
• Emissions/Fuel Strategy: Low Fuel Consumption

Mais informações

Generator Set Specifications

• Minimum Rating: 890 eKW
• Maximum Rating: 1250 eKW
• Emissions/Fuel Strategy: Low Fuel Consumption
• Voltage: 380 to 480 Volts
• Frequency: 60 Hz
• Speed: 1800 rpm
• Duty Cycle: Standby, Mission Critical, Prime, Continuous

Engine Specifications

• Engine Model: 3512A, V-12, 4-Stroke Water-Cooled Diesel
• Bore: 170 mm / 6.69 in
• Stroke: 190 mm / 7.48 in
• Displacement: 51.8 l / 3161.03 in³
• Compression Ratio: 13.5:1
• Aspiration: TA
• Fuel System: MUI
• Governor Type: Woodward

Generator Set Dimensions

• Length - Maximum: 5169 mm / 203.5 in
• Width - Maximum: 2015 mm / 79.3 in
• Height - Maximum: 2336 mm / 92 in
• Dry Weight - Genset (minimum): 10024 kg / 22099 lb
• Dry Weight - Genset (maximum): 10224 kg / 22540 lb
