Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Informações Tećnicas

• Minimum Rating: 365 kVA
• Maximum Rating: 550 kVA
• Emissions/Fuel Strategy: Low Fuel, Tier 2 or 3

Mais informações

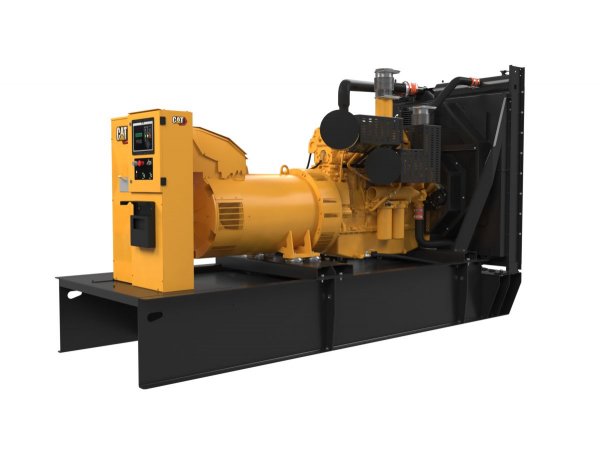

Generator Set Specifications

• Minimum Rating: 365 kVA
• Maximum Rating: 550 kVA
• Emissions/Fuel Strategy: Low Fuel, Tier 2 or 3
• Voltage: 208 to 600 Volts
• Frequency: 50 Hz
• Speed: 1500 rpm
• Duty Cycle: Standby, Prime

Engine Specifications

• Engine Model: C15 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
• Bore: 137.2 mm / 5.4 in
• Stroke: 171.4 mm / 6.75 in
• Displacement: 15.2 l / 927.56 in³
• Compression Ratio: 16.1:1
• Aspiration: Air to Air Aftercooled
• Fuel System: MEUI
• Governor Type: Adem™A4

Generator Set Dimensions

• Length - Maximum: 5656 mm / 222.7 in
• Width - Maximum: 2286 mm / 90 in
• Height - Maximum: 2367 mm / 93.2 in
