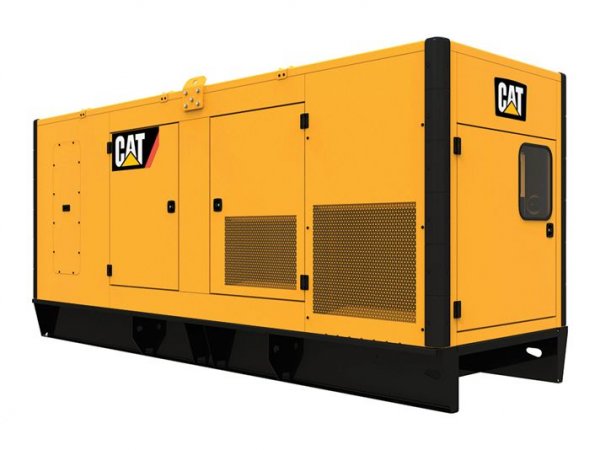

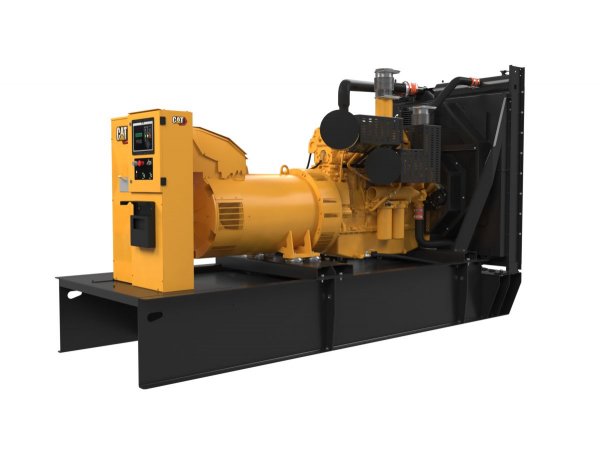

C15 (50 Hz) - GRUPOS GERADORES

  • ColeçãoColeçãoGRUPOS GERADORES
carousel
carousel
carousel
carousel
carousel
carousel

Descrição

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Informações Tećnicas

  • Minimum Rating: 365 kVA
  • Maximum Rating: 550 kVA
  • Emissions/Fuel Strategy: Low Fuel Consumption, U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 or Tier 3 Nonroad Equivalent Emission Standards), EU Stage IIIA Nonroad Emission Standards, China Nonroad III Emission Standards

Mais informações

Generator Set Dimensions

  • Length - Maximum: 3830 mm / 150.8 in
  • Width - Maximum: 1481 mm / 58.3 in
  • Height - Maximum: 2193 mm / 86.3 in

Generator Set Specifications

  • Minimum Rating: 365 kVA
  • Maximum Rating: 550 kVA
  • Voltage: 208 to 600 Volts
  • Frequency: 50 Hz
  • Speed: 1500 rpm
  • Length - Maximum: 3830 mm / 150.8 in
  • Width - Maximum: 1481 mm / 58.3 in
  • Height - Maximum: 2193 mm / 86.3 in
  • Emissions/Fuel Strategy: Tier 2 or Tier 3
  • Duty Cycle: Standby, Prime

Generator Set Configurations

  • Emissions/Fuel Strategy: Low Fuel Consumption, U.S. EPA Certified for Stationary Emergency Use Only (Tier 2 or Tier 3 Nonroad Equivalent Emission Standards), EU Stage IIIA Nonroad Emission Standards, China Nonroad III Emission Standards

Engine Specifications

  • Engine Model: C15 ATAAC, I-6, 4-Stroke Water-Cooled Diesel
  • Displacement: 15.2 l / 927.56 in³
  • Fuel System: MEUI
  • Aspiration: Air to Air Aftercooled
  • Governor Type: Adem™A4
  • Compression Ratio: 16.1:1
  • Bore: 137.2 mm / 5.4 in
  • Stroke: 171.4 mm / 6.75 in

Dimensions

  • Length - Maximum: 3830 mm / 150.8 in
  • Width - Maximum: 1481 mm / 58.3 in
  • Height - Maximum: 2193 mm / 86.3 in
