Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Informações Tećnicas

• Minimum Rating: 72 ekW
• Maximum Rating: 100 ekW
• Emissions/Fuel Strategy: U.S. EPA Cert., Tier 3

Mais informações

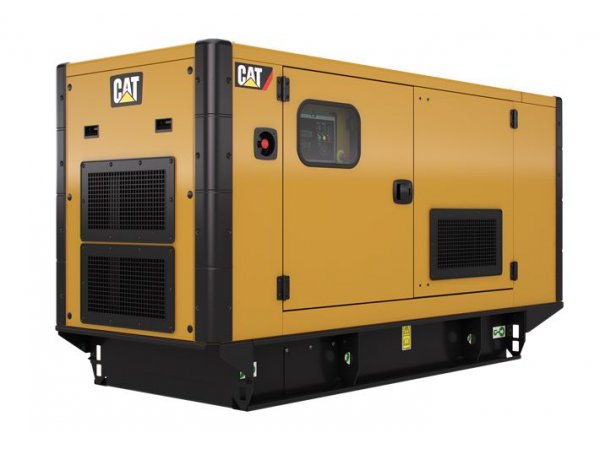

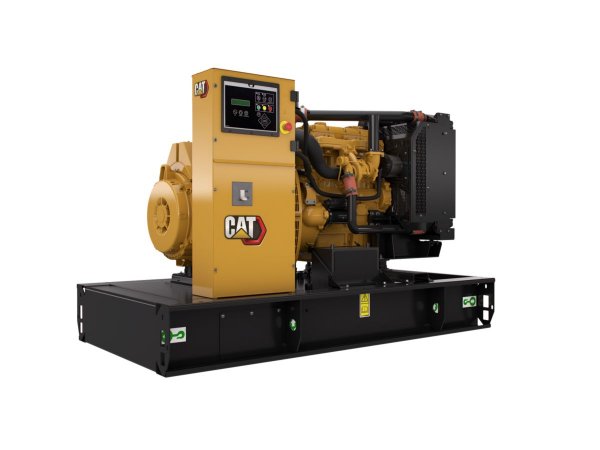

Generator Set Specifications

• Minimum Rating: 72 ekW
• Maximum Rating: 100 ekW
• Emissions/Fuel Strategy: U.S. EPA Cert., Tier 3
• Voltage: 110 to 480 Volts
• Frequency: 60 Hz
• Speed: 1800 rpm
• Duty Cycle: Standby, Prime

Engine Specifications

• Engine Model: Cat® C4.4
• Bore: 105 mm / 4.1 in
• Stroke: 127 mm / 5 in
• Displacement: 4.4 l / 268.5 in³
• Compression Ratio: 16.2:1, 17.25:1, 18.2:1 or 18.3:1
• Aspiration: Turbocharged
• Fuel System: Direct Injection or Common Rail
• Governor Type: Mechanical

Generator Set Dimensions

• Length - Maximum: 1925 mm / 75.8 in
• Width - Maximum: 1120 mm / 44.1 in
• Height - Maximum: 1361 mm / 53.6 in
